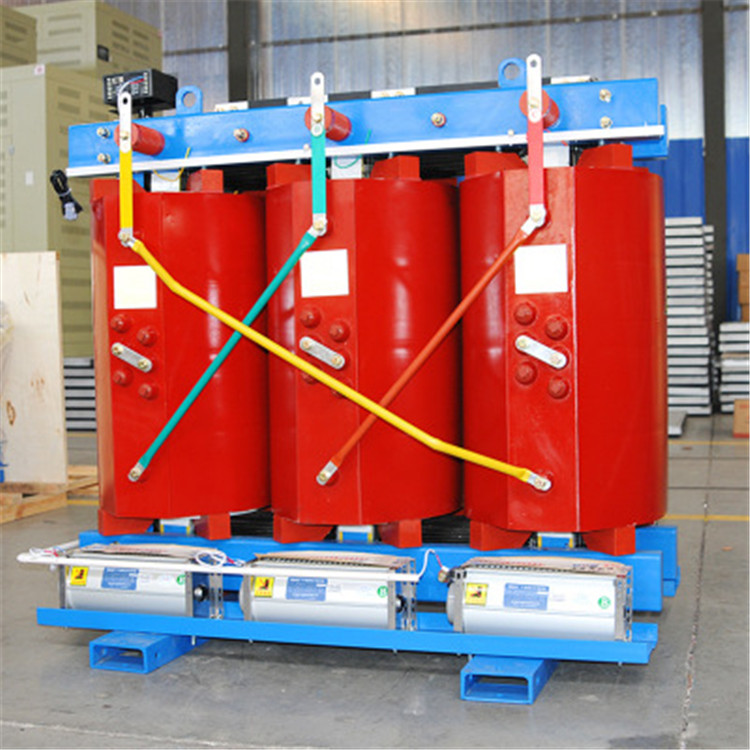

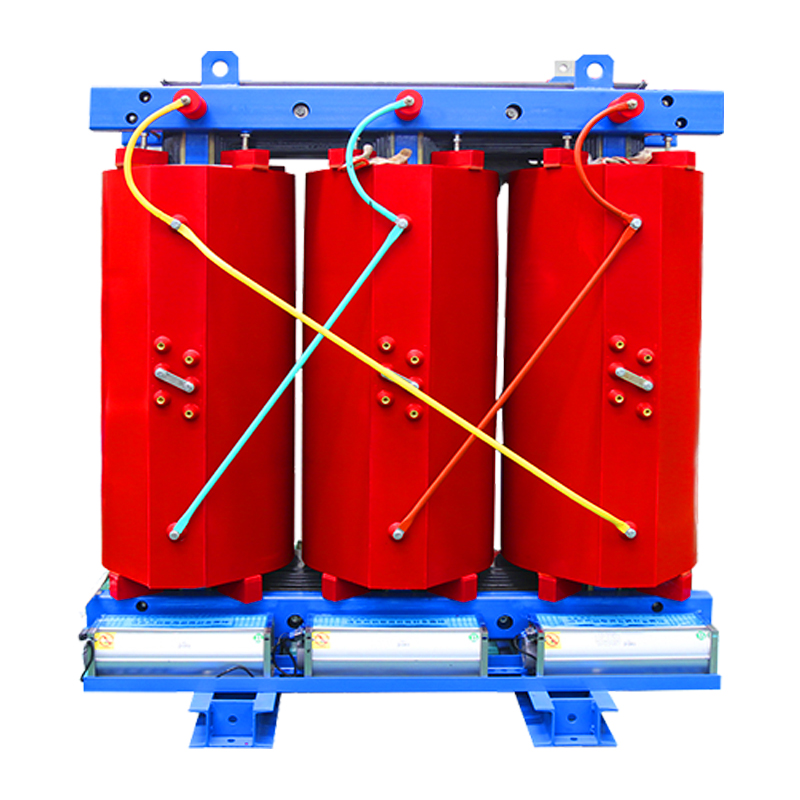

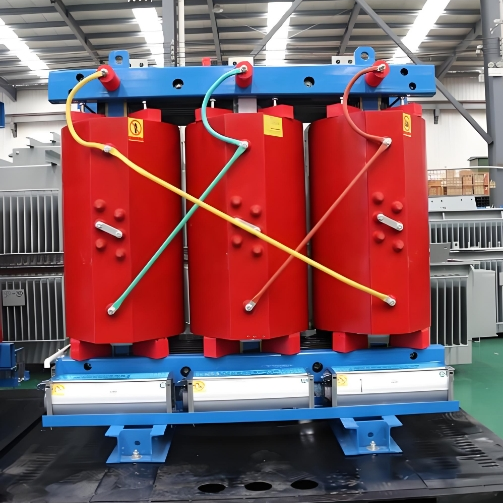

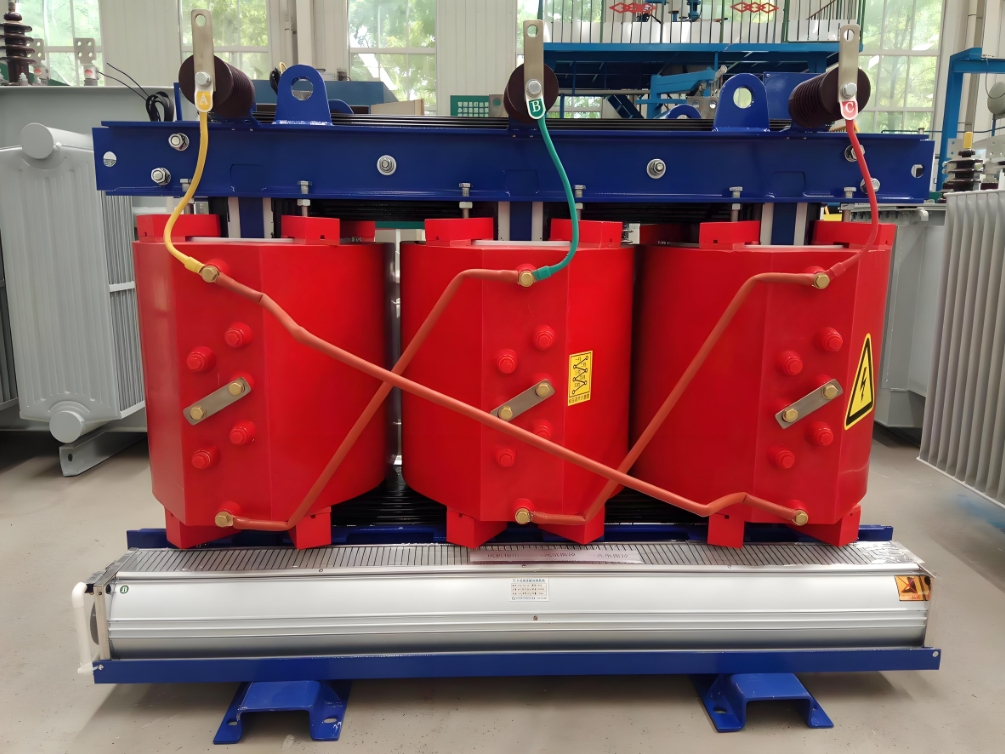

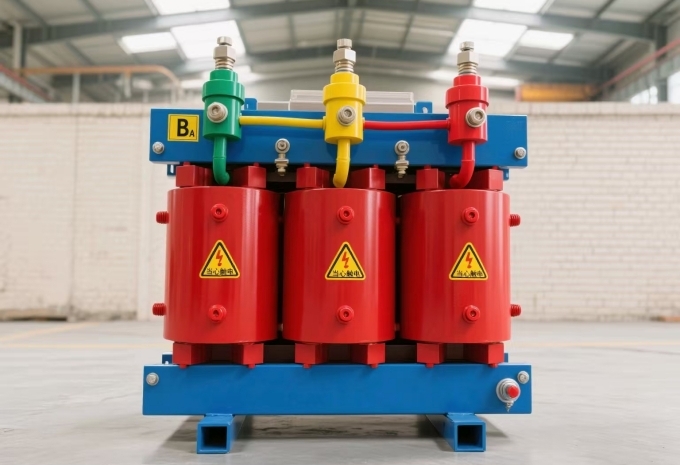

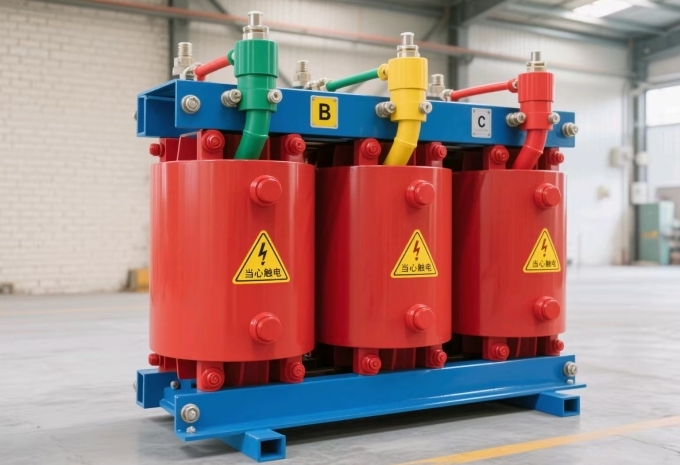

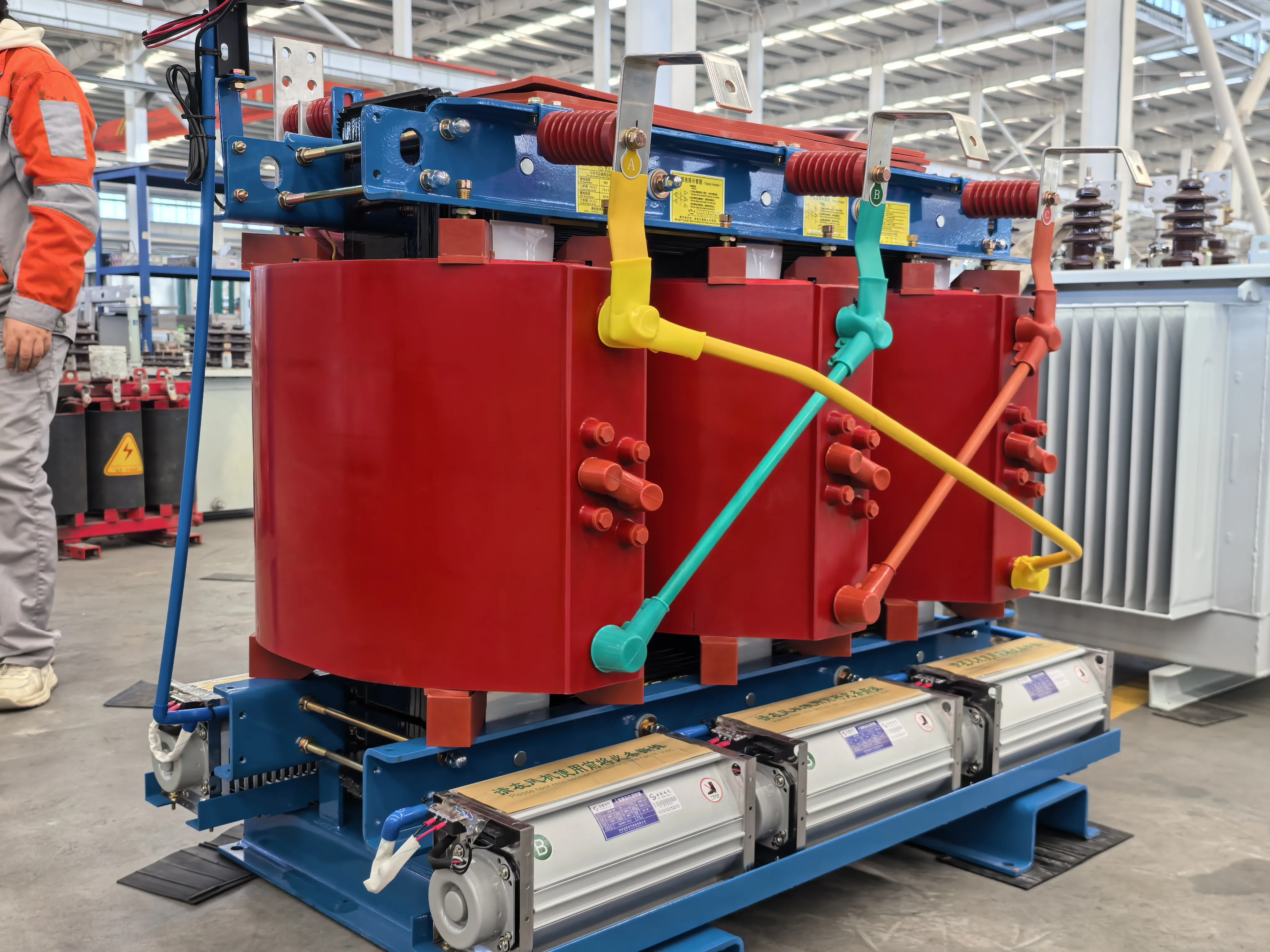

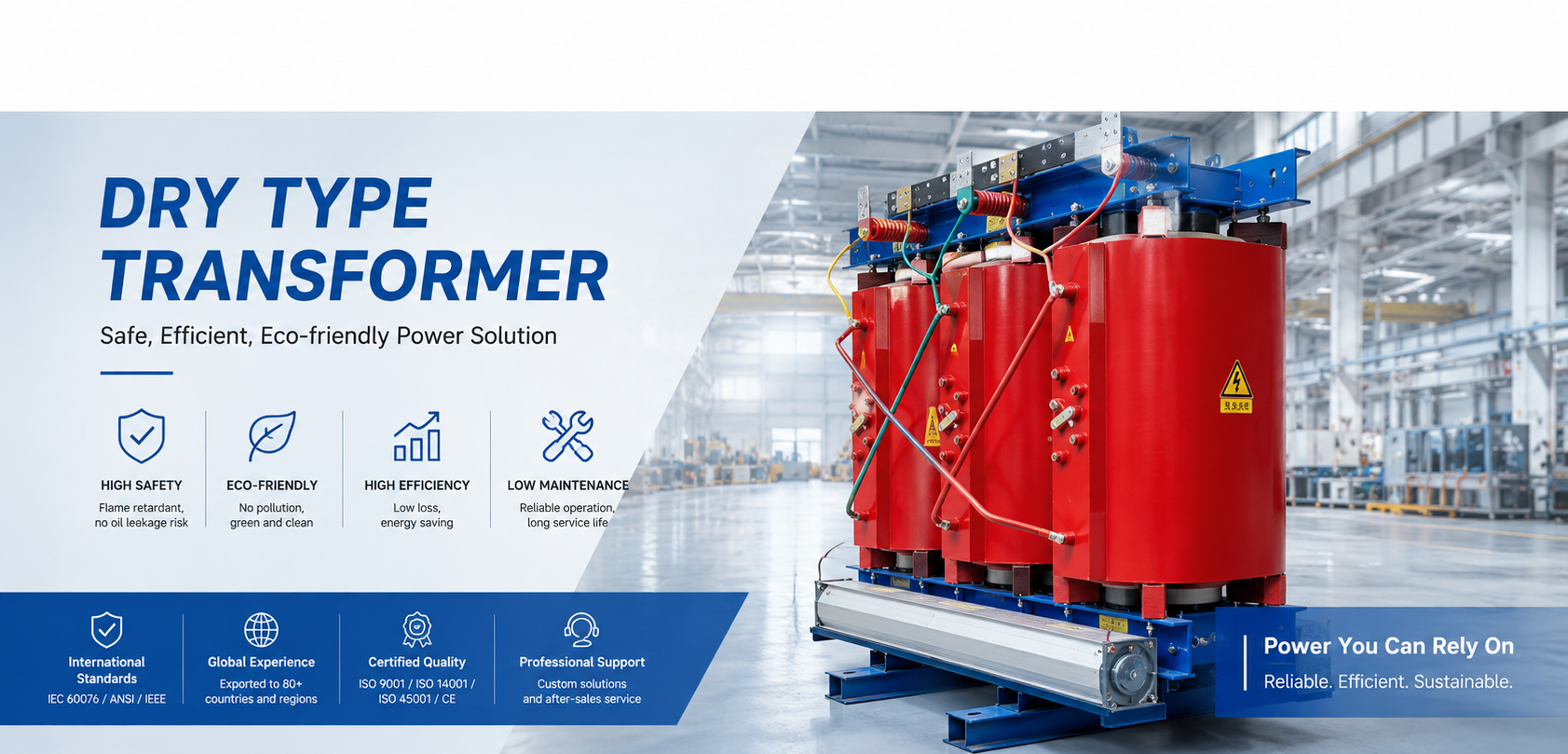

Dry type power transformer is a type of electrical equipment that does not use insulating oil. It is mainly used for high-rise buildings, power plants, commercial centers, and other places that require fire, explosion, and moisture protection through natural cooling or air cooling. Its iron core and winding have no oil insulation, and the shell is made of stainless steel, cold-rolled sheet or aluminum alloy, with flame retardant, explosion-proof, and no maintenance requirements.

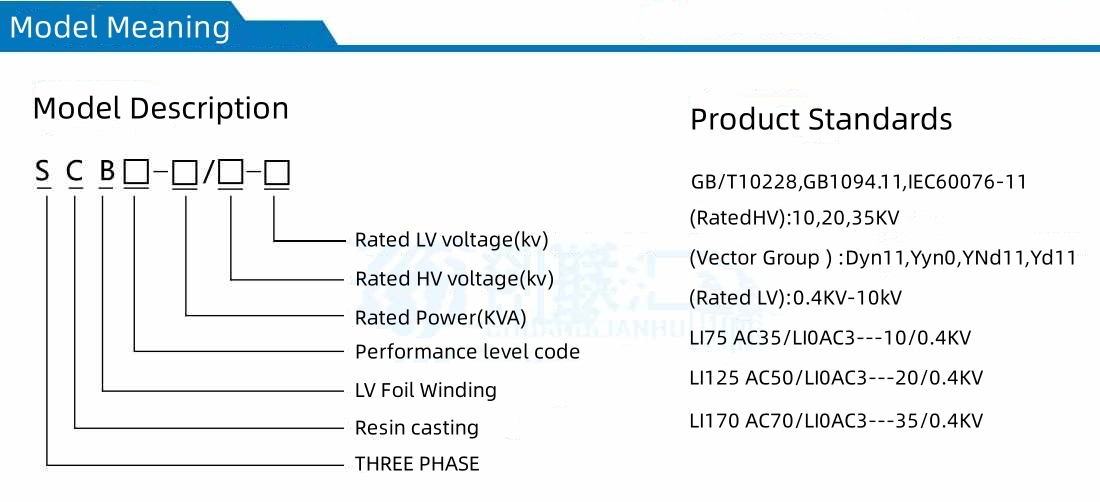

Model Number: SCB10、SCB11、SCB13 Service Voltage: 6.6-35kV
Rated Capacity: 30-5000kVA Phase: Three

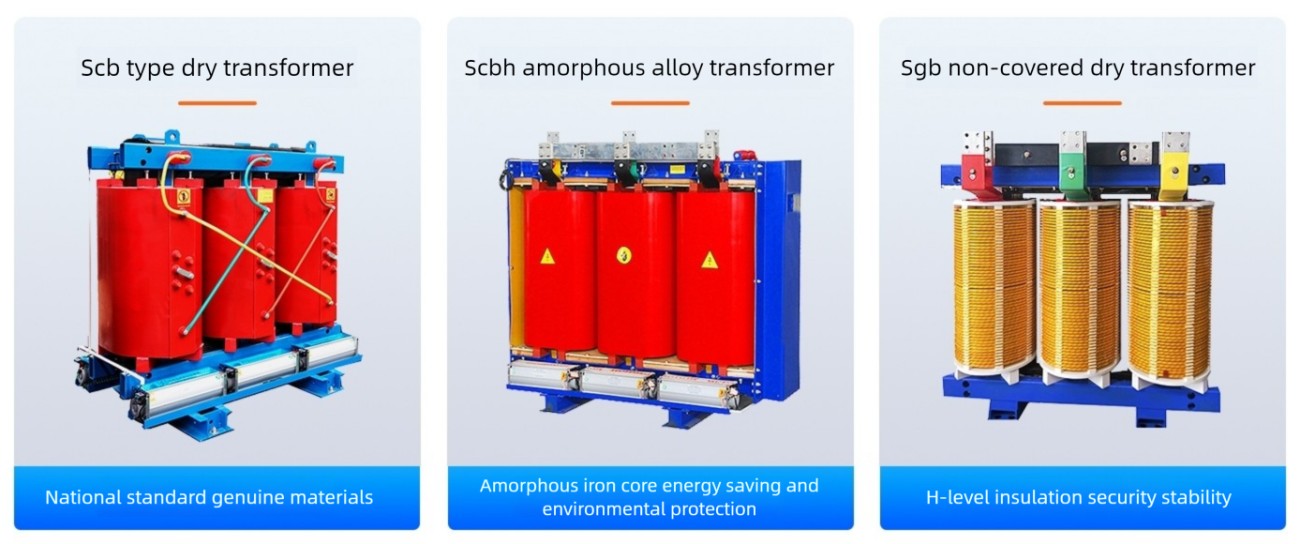

The common structures of dry-type transformers include open type, closed type, and cast type, each suitable for different environmental conditions to meet diverse usage needs. The cast winding is made of epoxy resin or other resins to achieve the main insulation function; The closed winding is enclosed in a shell and is not directly connected to the outside atmosphere. This design is mainly used for mining equipment, as its sealing and heat dissipation conditions are relatively poor, but it has explosion-proof characteristics.
Compared to oil immersed transformers, dry-type transformers are safer, easier to maintain, and adaptable to various installation environments, reducing the risk of fire and explosion.
Dry type transformers use advanced manufacturing processes and materials, such as cold-rolled silicon steel sheets and epoxy resin, to provide excellent insulation performance and mechanical strength.
| SCB10 11KV Dry-type Transformer | ||||||||
| Rated Capacity (kVA) |
High Voltage（kV) | Tapping Range | Low Voltage (kV) | Vector Group | No-Load Loss(w) | Load Loss | No-Load Current (%) | Short Circuit Impedance (%) |
| 50 |
11 10.5 10 6.3 6 |
±5%±2×2.5% | 0.4 | Dyn11 or Yyn0 | 270 | 1000 |
2.4 |
4 |
| 80 | 370 | 1380 | 1.8 |
|||||
| 100 | 400 | 1570 |
1.8 |
|||||
| 160 | 550 |
2130 |
1.6 |
|||||
| 200 | 630 |
2530 |
1.4 |
|||||
| 250 | 720 | 2760 |
1.4 |
|||||
| 315 | 880 |
3470 |
1.2 |
|||||
| 400 | 980 | 3990 |
1.2 |
|||||
| 500 | 1160 |
4880 |
1.2 |
|||||
| 630 | 1350 | 5880 |
1.0 |
|||||
| 800 | 1520 |
6960 |
1.0 |
6 | ||||
| 1000 | 1770 |
8130 |
1.0 |
|||||
CLHT Co., Ltd.:A reliable power transformer supplier in the range of 6KV to 35KV, specializing in the production of dry-type transformers, oil transformers, etc. It has been selling well in 38 countries and regions worldwide for 20 years.

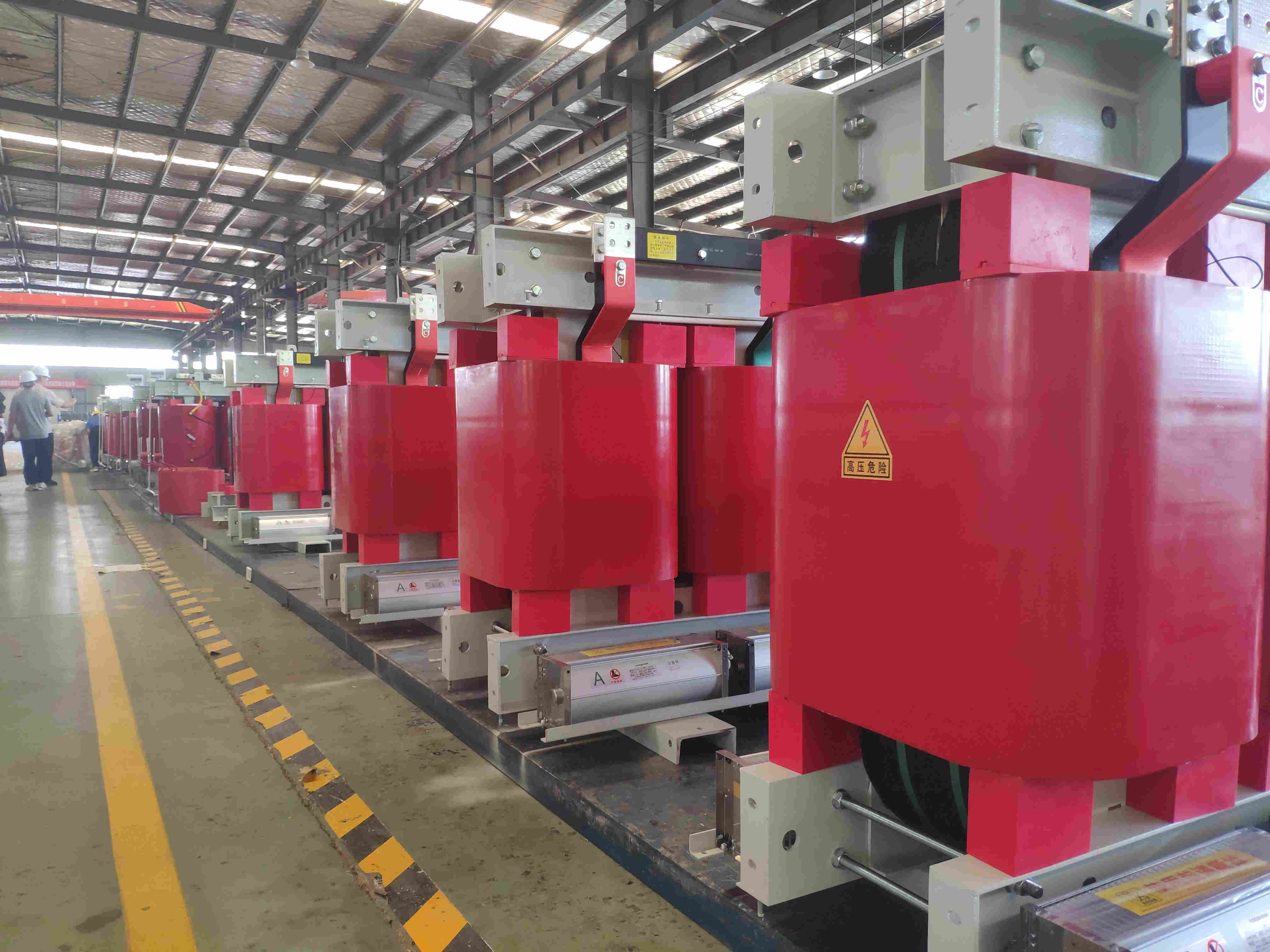

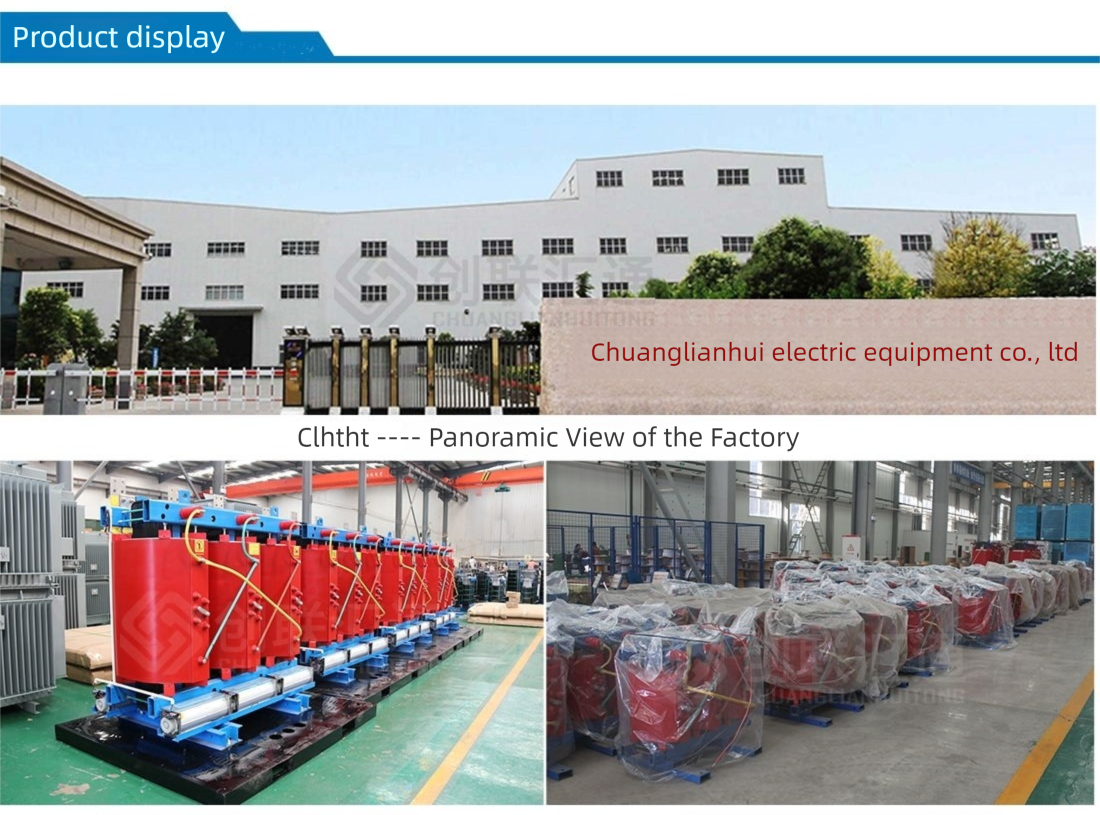

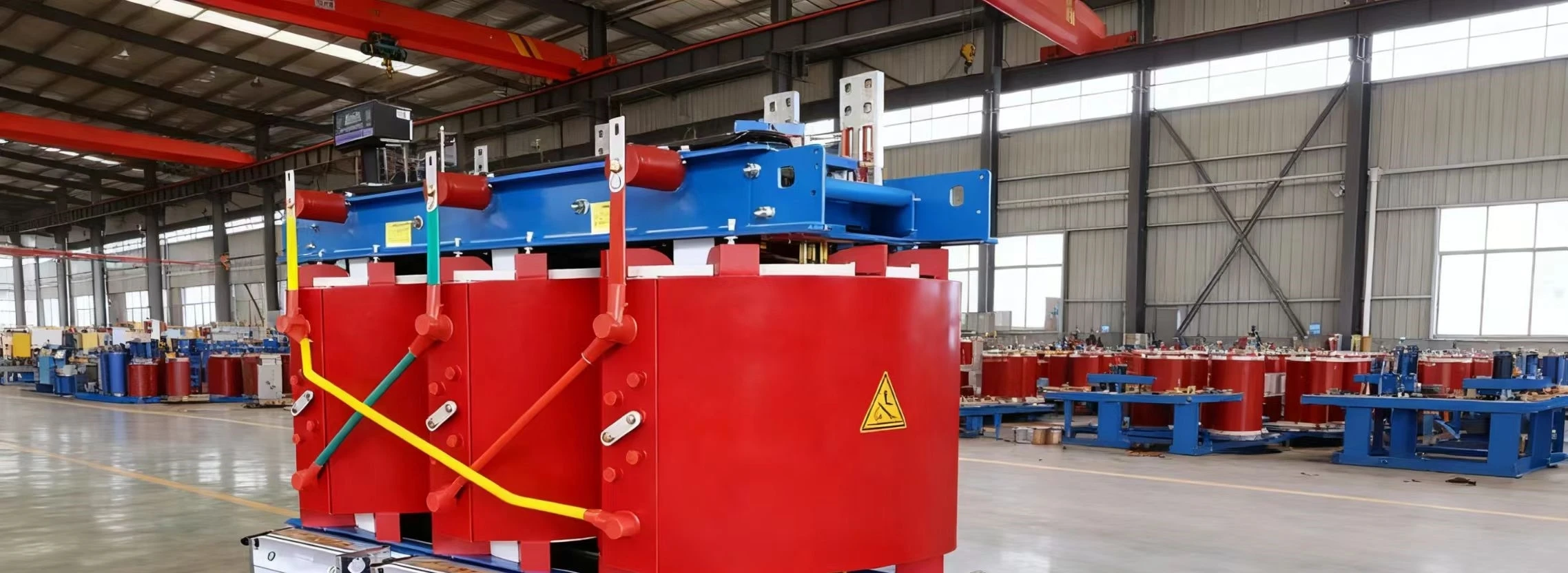

The company has 80,000 square meters of super-large modern industrial plants, 80 sophisticated production lines, more than 300 sets of imported production and testing equipment, and total assets of 205 million yuan. The production capacity exceeds 5,000 units per year, the output value is approximately 2 billion yuan, and the products are sold to 38 countries and regions around the world.
